Quick Details

  • Type: Carport, smart parking system
  • Height (mm): 1045
  • Width (mm): 340
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: sctewell
  • Model Number: RAP-P80
  • Warranty: 1 Years
  • Name: car smart parking system
  • Box material: SPCC Steel
  • Rail type: straight
  • Rail material: Aluminum Alloy
  • Rail lifting time: 3S/6S
  • Rail length: 1-6m
  • working voltage: AC220V,50HZ
  • logic voltage: 24V
  • protection grade: IP54

Packaging & Delivery

Packaging Details wooden package,car parking barrier
Delivery Time 3-5 days for sample, 15-20 days for production

               Professional car parking system solution

Product Description

1.One Entrance and One Exit Standard Parking Management System



 2.Descriptions of our parking payment system

Our parking payment management system use RFID card .

1.Complete standard parking system (One Entrance ,One Exit ):



At Entrance :(including dispenser card machine , boom barrier and loop detector)

There is an automatic dispenser card machine for short terms customers and proximity cards

for permanent customers or monthly charged customers at the entrance point .



When the short terms customers take a card from dispenser card machine or permanent

customers swiping card on it , then the barrier gate open .



At Exit : (including swiping card box , boom barrier and loop detector)

There is a swiping card box for permanent customers or monthly charged customers.



The driver swipe card on it direct ,then the barrier gate open .



For short terms customers,they need return the card to cashier in the guard room at exit ,
the parking management software will calculate how much they need to pay ,when completed payment
the parking fees , then the cashier open the barrier gate by manual

button or remote controller .



2.Long range read card system for permanent customers (long range 3-15 meters ):

We have Bluetooth card and UHF card for long range parking system .



There is a long range card reader at entrance and exit , the card stick on the windscreen of the car.

when the car is coming , the card will be read by the reader automatically, then the barrier gate open .



The system include long range readers, management software to add or delete cards/tags and to

set time zones for each card.



3.What is the specifications of our car boom barrier gate ?

Power SupplyAC220±10%, 50HZ
Power Consumption70Watts
Housing size 340*280*1045 mm
Housing color orange/blue/yellow /red
Rail type straight
Rail materialAluminum Alloy
Rail length 1-6m
Rail lifing time 3s/6s
Communication InterfaceRS485-232
MCBF≥5,000,000 times
Moto speed 30r/min
Traffic light Optional
Working temperature -40°C to 80°C
Working environment indoor,outdoor
Relative humidity 90%, no condensation

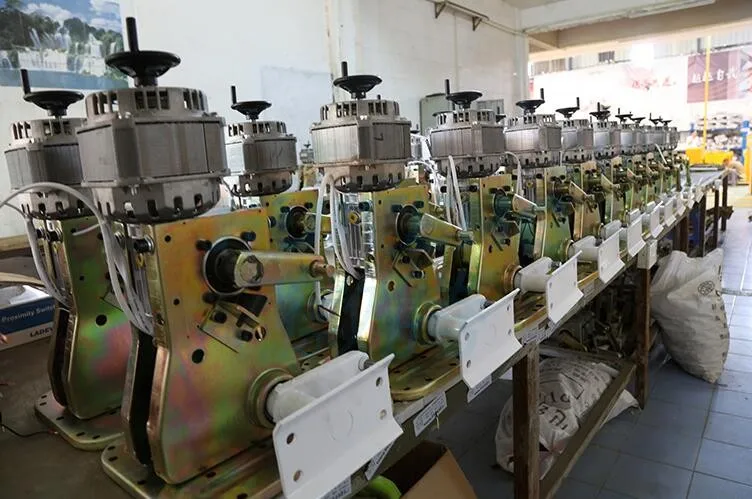

4.Pictures of Product Details

5.What is the Function of Our Product ?

1. Special running structure: no gear, no belt, which needs no special maintenance and makes

barrier gates work longer.
2. Special balance structure makes the arm moving with soft start, fast lifting or fast falling and

soft stop.
3. No shaking in all barrier gate arms moving process.
4. Arm moving is limited within 90 degrees which avoid accidents happen because of 360

degree arm moving.
5. Special design in integration of slow-speed aluminum-housing motor and transmission gear

box makes barrier gates running without any noise and in good heat dissipation.
6. Smart thermal protection system: control motor temperature in frequent using,thus motor will

never be burnt.

  • Bidirectional self-locking function.
  • Time protection function.
  • "Gate open "command has high priority.
  • "Close"command memory function available.
  • Remote control interface,remote control emitter can be equipped.
  • Three operation modes:remote control,push button,manually operation.
  • Loop detector can be equipped.
  • Infrared detecting interface,infrared detecting device can be equipped.
  • Wave pressure device is controlled by wave pressure switch,so as to protect car or person  from smashing.
  • Illuminated barrier boom is our patented product, with the function of decoration and caution.
  • Simply structure,runs stable and reliable.

6.Project Show





7.Certifications of Our Product







Packaging & Shipping

1.Trade Items of Product

MOQ1Set
Package Carton and Wooden Frame
Delivery Items FOB,CFR,CIF,EXW,Express Delivery
Delivery Time 15 working days after order confirmation
Payment Type T/T,Western Union ,L/C,PayPal
Supply Ability 1000 Sets /Month
Port Shenzhen



2.Packing of Product

Standard carton and wooden case for protecting products in the shipping

 3.Packing list of stardard configuration

NO.ItemQty.
1Main case1 set
2Boom1 pcs
3Boom cover-plate1 pcs
4M10*65 bolts,M10 nuts,Φ10 spring washer

4 pcs for each

5Control system (mounted inside main case)1 set
6Remote controller2 pcs
7Bracket (optional)1 pcs
8Key2 pcs
9Manual button1 pcs
10Wire connection drawing1 pcs
11certificate of qualification1 pcs
12Operation manual1 pcs





Company Information
Founded in 2006, Roanpu Technologies, is China leader supplier for channel management equipments and intelligent security system solutions. We are supply turnstile gate , parking management system and door access control system .

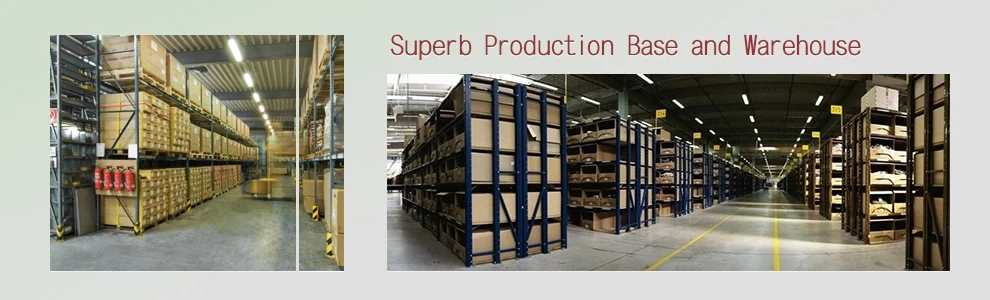

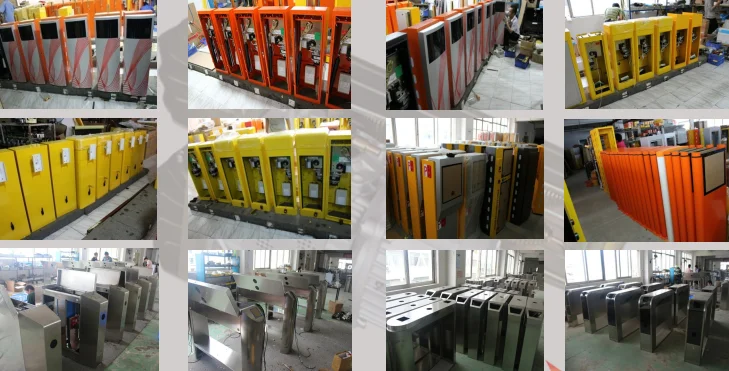

1.Our Company View
2.Our Customers
FAQ

 1.Q:Motor working while arm stays at stop?

    A:(1)Check whether the power is normal? Plug power switch.

        (2)Are connections well done?Limit line: grey(lift) blue(common) green(falling).

        (3) Is capacitance connected?Connect capacitance lines with motor falling and lift line.

2.Q:Arm shaking during lift or falling process?

   A:(1) Spring not balance, refer to spring adjustment.

      (2) Arm screw is not tight, tight the arm screw.

      (3) Barrier body not fixed, tight body fixing screw.

3.Q:Arm stops as its falling not complete?

   A:(1) Limit switch is not adjusted well, refer to limit connection.

      (2) Spring has no resilience, change a new spring.

4.Q: Not anti-hitting?

   A:Loop detector, photocell notconnect well,Change new loop detector or photocell and

      connect them in right way.

5.Q: Arm not stop at its limit?

   A:Limit switch is not adjusted well,let arm is level or vertical place, put light-blocking flake

      in the middle of electrical limit switch, if lamp lights,then OK.Red lamp is arm falling limit

      and green lamp is arm lifting limit.

4.How to contact us?

Skype:china.roanpu

Tel: +0086 0755 81755585
Fax:+0086 0755 83243332
http://roanpu.en.alibaba.com
www.sctewell.com




Send your inquiry details in the below for more surprise price ,click "Send" now!
